Specification | STC

• Module Type: JKM555N-72HL4-V
• Maximum Power (Pmax): 555Wp
• Maximum Power Voltage (Vmp): 41.64V
• Maximum Power Current (Imp): 13.33A
• Open-circuit Voltage (Voc): 50.34V
• Short-circuit Current (Isc): 14.07A
• Module Efficiency STC (%): 21.48%
• Operating Temperature (℃): -40℃~+85℃
• Maximum system voltage: 1000/1500VDC (IEC)
• Maximum series fuse rating: 25A
• Power tolerance: 0~+3%
• Temperature coefficients of Pmax: -0.35%/℃
• Temperature coefficients of Voc: -0.28%/℃
• Temperature coefficients of Isc: 0.048%/℃
• Nominal operating cell temperature (NOCT): 45±2℃

Mechanical Characteristics

• Cell Type: N type Mono-crystalline
• No. of cells: 144 (6×24)
• Dimensions: 2278×1134×35mm (89.69×44.65×1.38 inch)
• Weight: 28.9 kg (61.73 lbs)
• Front Glass: 3.2mm, Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass
• Frame: Anodized Aluminium Alloy
• Junction Box: IP68 Rated
• Output Cables: TUV 1×4.0mm2 (+): 400mm , (-): 200mm or Customized Length

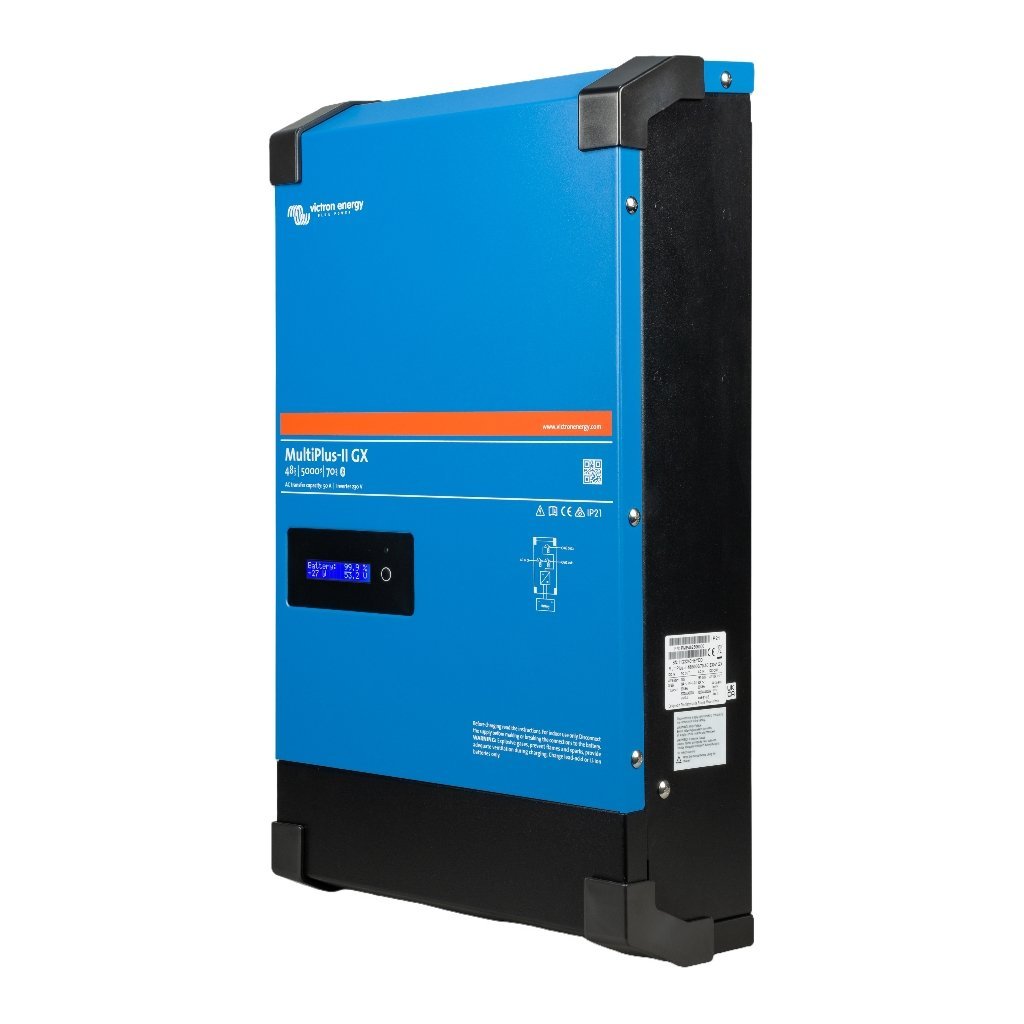

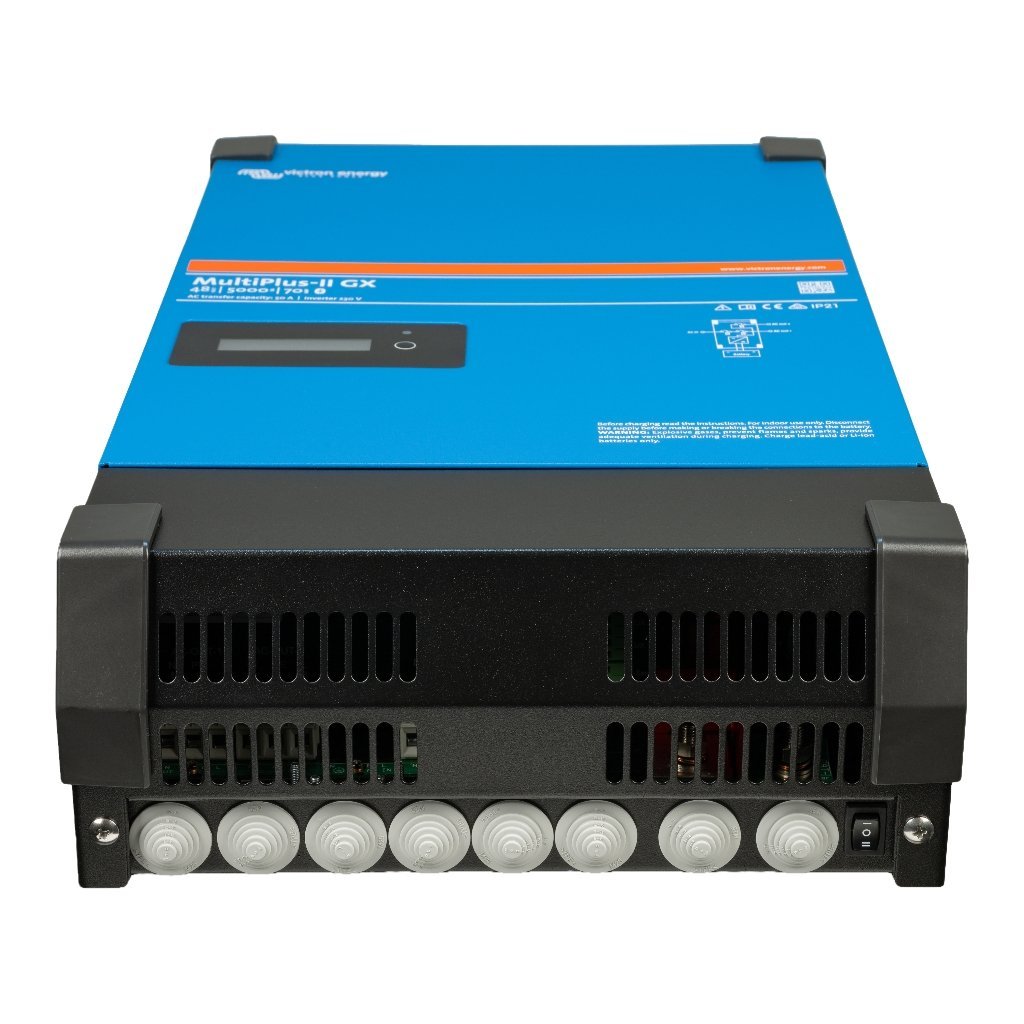

Victron Energy MultiPlus-II 48-15000-200-100 Inverter/Charger – Unmatched Efficiency and Versatility

The Victron Energy MultiPlus-II 48-15000-200-100 Inverter/Charger is a state-of-the-art power system designed to meet the evolving needs of modern energy management. Combining the functionality of an inverter and charger, this device boasts superior efficiency, ensuring seamless, uninterrupted power delivery for residential, commercial, and industrial applications. Its dual functionality simplifies system designs and reduces installation costs, offering outstanding value for power management solutions.

Reliable Performance Tailored to Your Needs

Engineered with precision, the MultiPlus-II excels in delivering robust performance. With an inverter capacity of 15,000 VA (15 kVA), it ensures a consistent power supply, effortlessly handling peak loads and fluctuations. The built-in 200A charger efficiently replenishes energy storage systems, minimizing downtime and maximizing uptime. Whether you require uninterrupted power for mission-critical systems or an eco-friendly backup for sustainable energy setups, this product delivers uncompromised reliability.

Advanced Features for a Superior Experience

Experience cutting-edge technology with the MultiPlus-II’s smart energy management capabilities. The PowerAssist feature prevents overloads by dynamically supporting limited power sources, such as generators or grid connections. Its integrated remote monitoring and control options ensure you stay informed and in charge of your energy systems, even from a distance. Compatible with various battery systems, including lithium and lead-acid, this versatile inverter/charger is an adaptable solution for diverse energy setups.

Why Choose the Victron Energy MultiPlus-II?

Every aspect of the Victron Energy MultiPlus-II 48-15000-200-100 Inverter/Charger is meticulously designed to offer unparalleled efficiency and durability. Whether for off-grid living, grid-tied backup systems, or hybrid renewable energy systems, it delivers consistent, high-quality power. With a focus on reliability, sustainability, and advanced features, this product ensures you make the most of your investment in energy independence.

Suntree 1000V DC Solar PV Combiner Box – 2 Strings Input, 1 String Output, Ideal for Off-Grid Solar Systems in Africa.

Looking to set up an off-grid solar power system in Africa? The Suntree 1000V DC Solar PV Combiner Box is your perfect solution. Designed for efficient solar energy management, it offers 2 strings input and 1 string output, making it ideal for renewable energy solutions across Africa, from Kenya to South Africa.

This combiner box features high reliability with built-in DC fuses, surge protection devices, and a DC circuit breaker or load isolation switch, ensuring a safe and stable solar power system. The durable PVC engineering material offers IP65 protection, making it waterproof, dustproof, and UV-resistant—perfect for Africa’s diverse climate.

Tested for fire retardance, temperature stability, and anti-impact capabilities, the Suntree combiner box meets the CGC/GF 037:2014 standards. It’s suitable for single crystal silicon, polycrystalline silicon, and thin-film solar modules, ensuring flexible configuration for various solar installations.

Whether you’re looking for solar battery storage in Africa, want to know the cost of solar panels, or are interested in setting up solar power for your home, the Suntree combiner box makes solar power installation seamless. Experience the benefits of solar energy in Africa with this reliable, high-quality solution.

For more information on the price of a solar power system or to buy a solar power system in Africa, reach out today!
