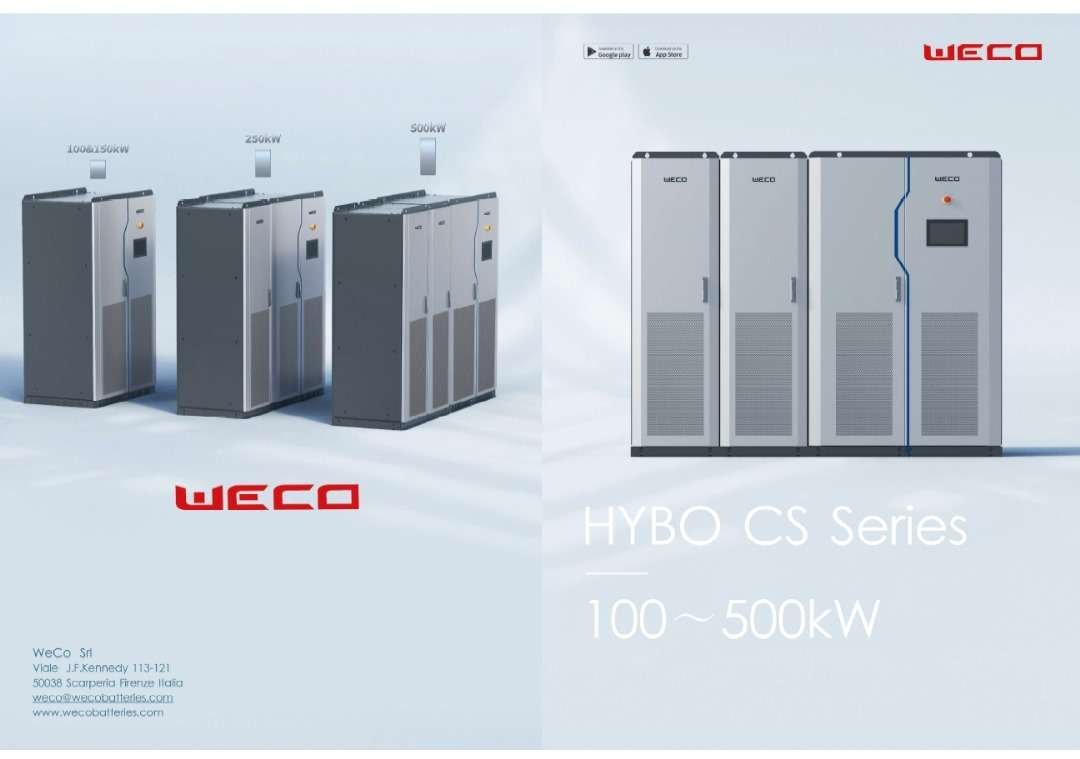

WECO Hybo CS 150 kW Hybrid Inverter
₦0.00
Scalability
Designed for scalability, allowing seamless expansion to meet growing energy demands by adding multiple units in parallel or stacked configurations
IP 20 Certified
Protected against larger solid objects, it is suitable for dry, indoor environments where exposure to liquids is not a concern.
Integrated Wi-Fi & Bluetooth
Enables effortless wireless communication and remote monitoring, enhancing convenience and flexibility in operation.
Free Delivery
Nationwide shipping
Warranty
Manufacturer guarantee
Expert Support
Installation & maintenance
- Description
- Features
- Specifications
- Reviews
Description

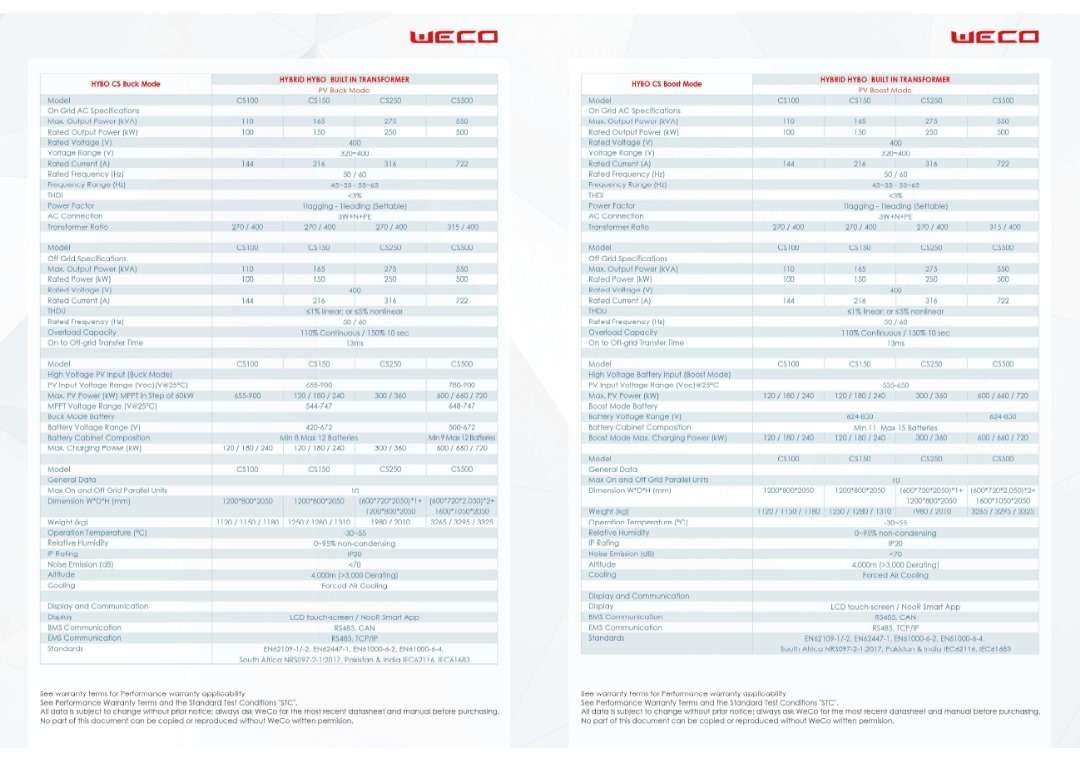

| HYBO CS Buck mode | HYBRID HYBO BUILT IN TRANSFORMER | |||
| PV Buck Mode | ||||
| Model | CS100 | CS150 | CS250 | CS500 |
| On Grid AC specifications | ||||
| Max. Output power (kVA) | 110 | 165 | 275 | 550 |
| Rated Output Power (kW) | 100 | 150 | 250 | 500 |
| Rated Voltage (V) | 400 | |||
| Voltage Range (V) | 320~460 | |||
| Rated Current (A) | 144 | 216 | 361 | 722 |
| Rated Frequency (Hz) | 50 / 60 | |||
| Frequency Range (Hz) | 45~55 – 55~65 | |||
| THDi | <3% | |||
| Power Factor | 1 lagging – 1 leading (Settable) | |||
| AC Connection | 3W+N+PE | |||
| Transformer Ratio | 270 / 400 | 270 / 400 | 270 / 400 | 315 / 400 |
| Model | CS100 | CS150 | CS250 | CS500 |
| Off Grid Specifications | ||||
| Max. Output Power (kVA) | 110 | 165 | 275 | 550 |
| Rated Power (kW) | 100 | 150 | 250 | 500 |
| Rated Voltage (V) | 400 | |||
| Rated Current (A) | 144 | 216 | 361 | 722 |
| THDU | ≤1% linear; or ≤5% nonlinear | |||
| Rated Frequency (Hz) | 50 / 60 | |||
| Overload Capacity | 110% Continuous / 150% 10 sec | |||
| On to Off-grid Transfer Time | 13ms | |||
| Model | CS100 | CS150 | CS250 | CS500 |
| High Voltage PV Input (Buck Mode) | ||||
| PV Input Voltage Range (Voc)（V@25°C） | 655-900 | 780-900 | ||
| Max. PV Power (kW) MPPT in step of 60kW | 120 / 180 / 240 | 120 / 180 / 240 | 300 / 360 | 600 / 660 / 720 |
| MPPT Voltage Range（V@25°C） | 544-747 | 648-747 | ||
| buck mode Battery | ||||
| Battery Voltage Range (V) | 420-672 | 500-672 | ||
| Battery cabinet Composition | Min 8 Max 12 Batteries | Min 9 Max 12 Batteries | ||
| Max. Charging Power (kW) | 120 / 180 / 240 | 120 / 180 / 240 | 300 / 360 | 600 / 660 / 720 |
| Model | CS100 | CS150 | CS250 | CS500 |
| General Data | ||||
| Max On and Off grid parallel Units | 10 | |||
| Dimension W*D*H (mm) | 1200*800*2050 | 1200*800*2050 | (600*720*2050) *1+1200*800*2050 | (600*720*2,050) *2+1600*1050*2050 |
| Weight (kg) | 1120 / 1150 / 1180 | 1250 / 1280/1310 | 1980 / 2010 | 3265/3295/3325 |
| Operation Temperature (℃) | -30~55 | |||
| Relative Humidity | 0~95% non-condensing | |||
| IP Rating | IP20 | |||
| Noise Emission (dB) | <70 | |||
| Altitude | 4,000m (>3,000 Derating) | |||
| Cooling | Forced Air Cooling | |||
| Display and Communication | ||||
| Display | LCD touchscreen / NooR Smart App | |||
| BMS Communication | RS485, CAN | |||
| EMS Communication | RS485, TCP/IP | |||
| Standards | EN62109-1/-2, EN62447-1, EN61000-6-2, EN61000-6-4, South Africa NRS097-2-1:2017, Pakistan & India IEC62116, IEC61683 | |||
See warranty for performance warranty applicability.
See Performance Warranty Terms and the Standard Test Conditions “STC”.
All data is subjected to change without prior notice: Always ask WeCo for the most recent datasheet and manual before purchasing.
No part of this document can be copied or reproduced without WeCo written permission.
