Canadian Solar 600 Watts HiKu7 Super High Power Mono PERC Module
(0)
₦180,000.00
Free Delivery
Nationwide shipping
Warranty
Manufacturer guarantee
Expert Support
Installation & maintenance
- Description
- Features
- Specifications
- Reviews
Description

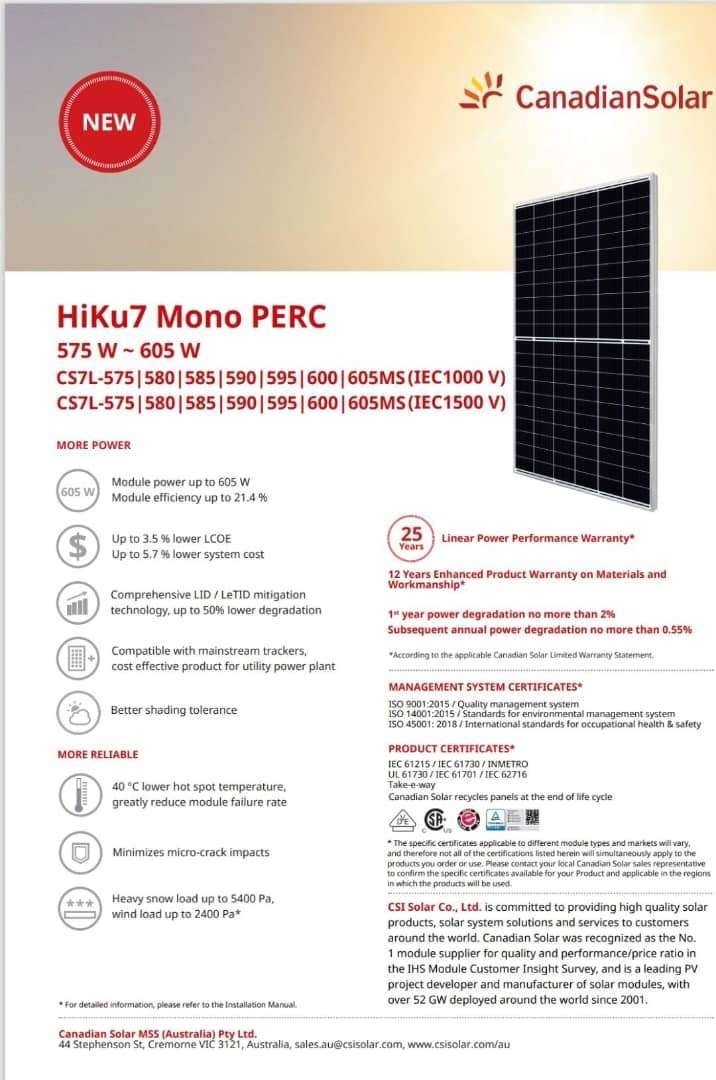

MORE POWER
- Module efficiency up to 21.4 %
- Up to 3.5 % lower LCOE
- Up to 5.7 % lower system cost
- Comprehensive LID / LeTID mitigation technology, up to 50% lower degradation
- Compatible with mainstream trackers, cost-effective product for utility power plant
- Better shading tolerance
MORE RELIABLE
- Minimizes micro-crack impacts
- 40 °C lower hot spot temperature, greatly reduce module failure rate
- Heavy snow loads up to 5400 Pa, enhanced wind loads up to 2400 Pa
- 12 years Enhanced Product Warranty on Materials and Workmanship
- 25 years Linear Power Performance Warranty

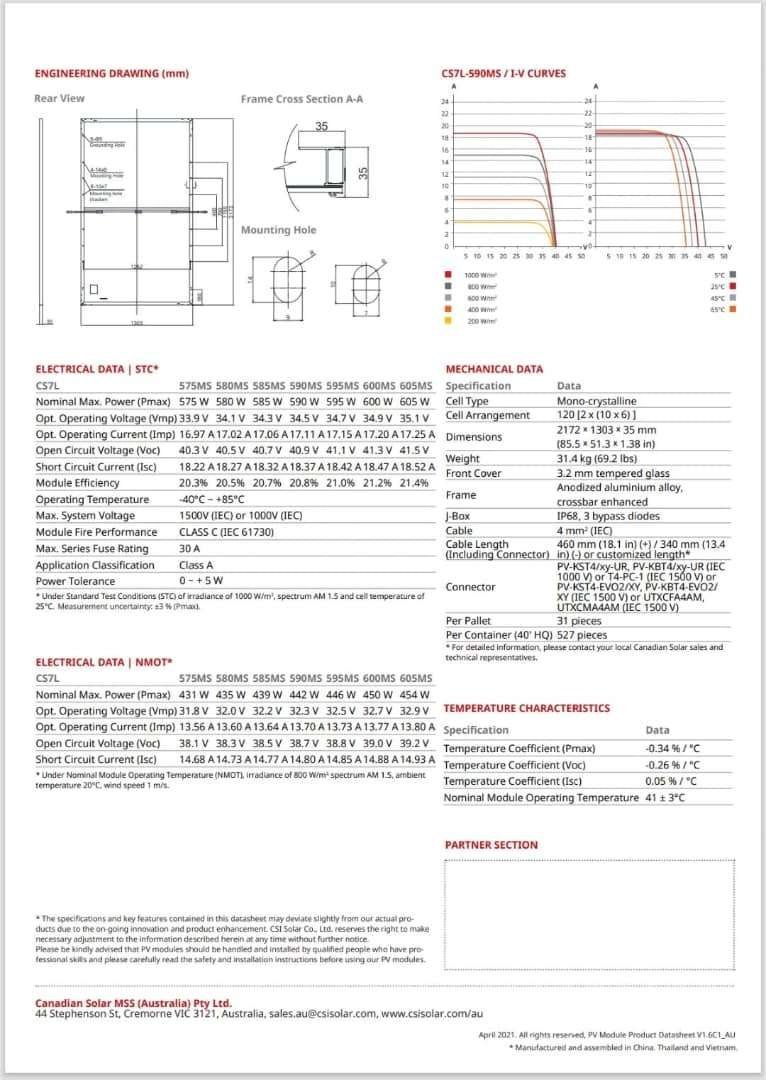

ELECTRICAL DATA | STC
- Nominal Max. Power (Pmax): 600 W
- Opt. Operating Voltage (Vmp): 34.9 V
- Opt. Operating Current (Imp): 17.20 A
- Open Circuit Voltage (Voc): 41.3 V
- Short Circuit Current (Isc): 18.47 A
- Module Efficiency: 21.2%
- Operating Temperature: -40°C ~ +85°C
- Max. System Voltage: 1500V (IEC/UL) or 1000V (IEC/UL)
- Module Fire Performance: TYPE 1 (UL 61730 1500V) or TYPE 2 (UL 61730 1000V) or CLASS C (IEC 61730)
- Max. Series Fuse Rating: 30 A
- Application Classification: Class A
- Power Tolerance: 0 ~ + 5 W
MECHANICAL DATA
- Cell Type: Mono-crystalline
- Cell Arrangement: 120 [2 x (10 x 6)]
- Dimensions: 2172 ˣ 1303 ˣ 35 mm (85.5 ˣ 51.3 ˣ 1.38 in)
- Weight: 31.4 kg (69.2 lbs.)
- Front Cover: 3.2 mm tempered glass
- Frame: Anodized aluminum alloy
- J-Box: IP68, 3 bypass diodes
- Cable: 4 mm2 (IEC), 12 AWG (UL)
- Cable Length (Including Connector): 410 mm (16.1 in) (+) / 290 mm (11.4 in) (-) (supply additional jumper cable: 2 lines / Pallet) or customized length
- Connector: T4 series or H4 UTX or MC4-EVO2
