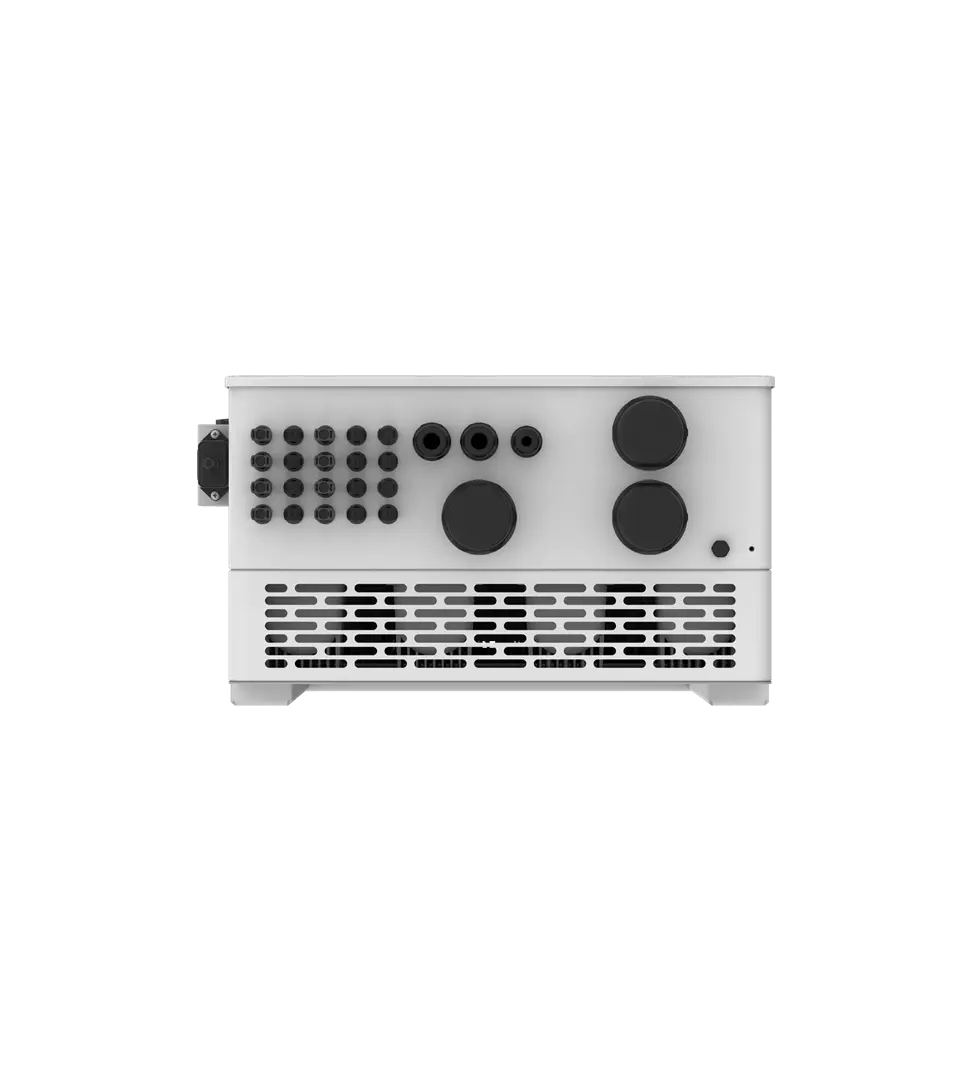

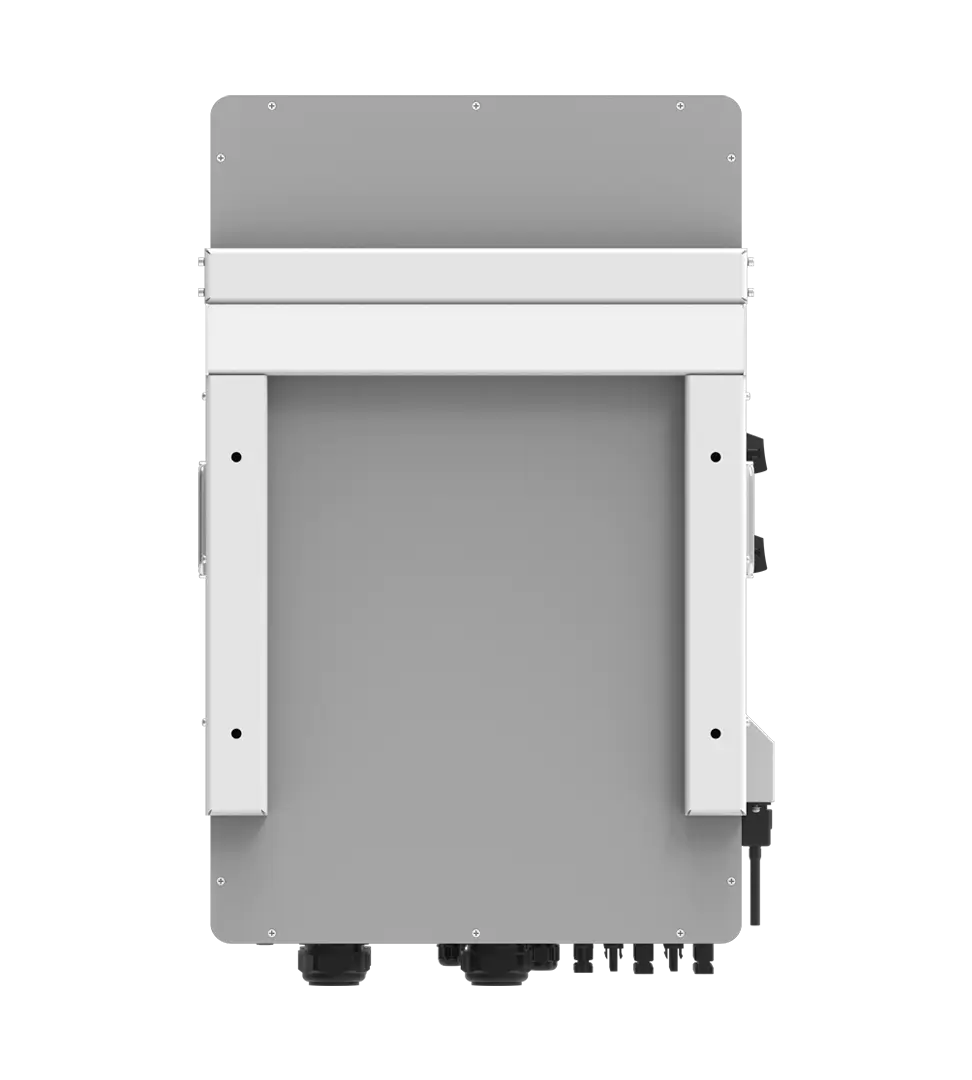

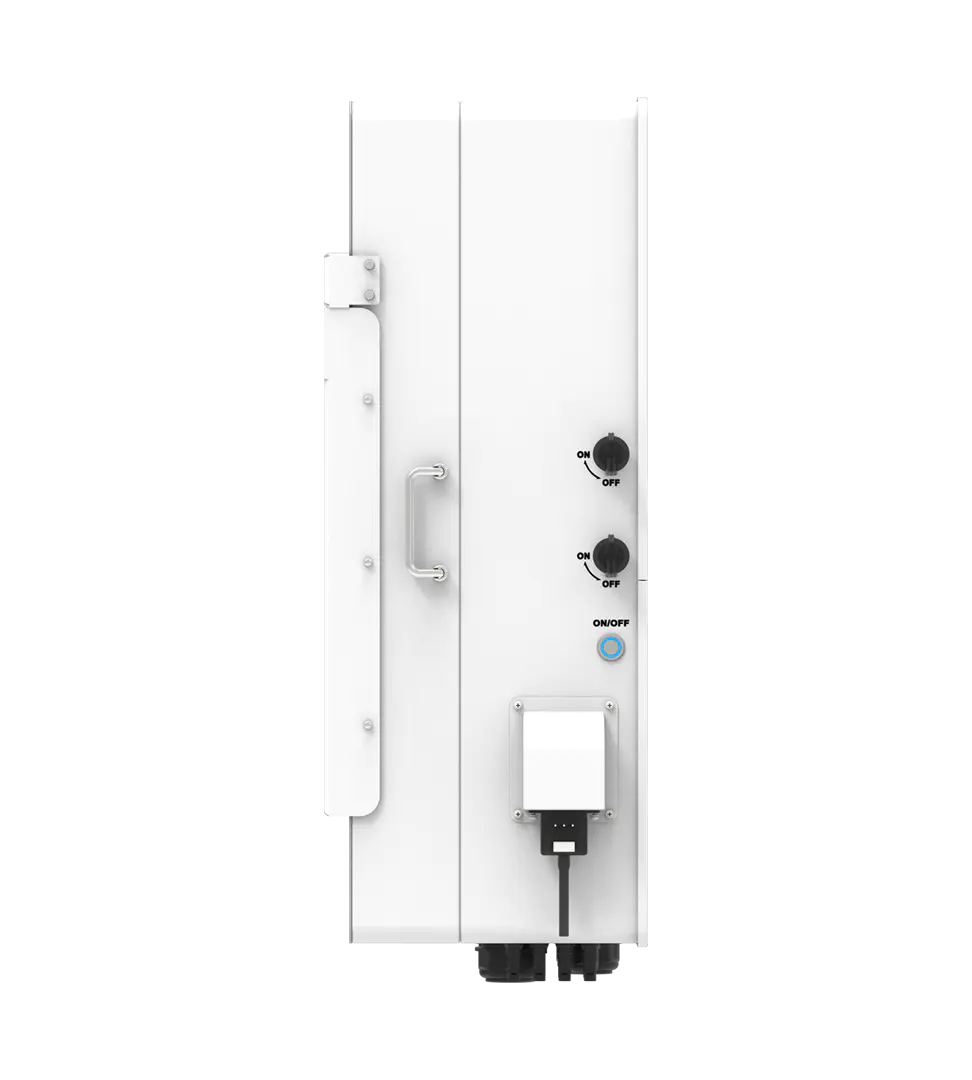

DEYE 30 kW Three Phase 3 MPPT Hybrid Inverter
₦6,267,500.00
The DEYE SUN-30K-SG01HP3-EU-BM3 is a brand-new three-phase hybrid inverter with a high-voltage battery, ensuring the system is safe and reliable. With a compact design and high-power density, this series supports a 1.3 DC/AC ratio, saving device investment. It supports a three-phase unbalanced output, extending the application scenarios. Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS, x1 RS232 port for remote control, and x1 DRM port, which makes the system smart and flexible.
It is equipped with RS485 / CAN port for battery communication.
Free Delivery
Nationwide shipping
Warranty
Manufacturer guarantee
Expert Support
Installation & maintenance
- Description
- Features
- Specifications
- Reviews
Description
Higher yields / Safe & Reliable / Smart / User-friendly
SUN-30K-SG01HP3-EU-BM2/3/4 is a brand new three-phase hybrid inverter with a high-voltage battery, ensuring the system is safe and reliable. With a compact design and high-power density, this series supports a 1.3 DC/AC ratio, saving device investment. It supports a three-phase unbalanced output, extending the application scenarios. Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS, x1 RS232 port for remote control, and x1 DRM port, which makes the system smart and flexible.
It is equipped with RS485 / CAN port for battery communication.
Remotely shutdown function
Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remote shutdown immediately when an accident occurs. Setting parameters and FW updates remotely, which makes PV plant O&M easier.
- 100% unbalanced output, each phase; Max. output up to 50% rated power
- DC coupled and AC coupled to retrofit existing solar system.
- Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
- Max. charging/discharging current of 100A
- High voltage battery, higher efficiency
- 6 time periods for battery charging/discharging
- Support storing energy from diesel generators.
Technical Specifications
| Model | SUN-25K-SG01HP3-EU-BM2 | SUN-30K-SG01HP3-EU-BM3 | SUN-40K-SG01HP3-EU-BM4 | SUN-50K-SG01HP3-EU-BM4 |
| Battery Input Data | ||||
| Battery Type | Lithium-ion | |||
| Battery Voltage Range (V) | 150~800V | |||
| Max. Charging Current (A) | 50A+50A | |||
| Max. Discharging Current (A) | 50A+50A | |||
| Number of battery input | 2 | |||
| Charging Strategy for Li-Ion Battery | Self-adaption to BMS | |||
| PV String Input Data | ||||
| Max. DC Input Power (W) | 32500W | 39000W | 52000W | 65000W |
| Max. DC Input Voltage (V) | 1000V | |||
| Start-up Voltage (V) | 150V | |||
| MPPT Range (V) | 200V-850V | |||
| Full Load DC Voltage Range (V) |
450-850
|
360-850
|
360-850
|
450-850
|
|
Rated DC Input Voltage (V)
|
600
|
|||
| PV Input Current (A) | 36A+36A | 36A+36A+36A | 36A+36A+36A+36A | |
| Max. PV ISC (A) | 55A+55A | 55A+55A+55A | 55A+55A+55A+55A | |
| No. of MPP Trackers | 2 | 3 | 4 | |
| No. of Strings per MPP Tracker | 2 | |||
| AC Output Data | ||||
| Rated AC Output and UPS Power (W) | 25000W | 3000W | 40000W | 50000W |
| Max. AC Output Power (W) | 27500W | 33000W | 44000W | 55000W |
| Peak Power (off-grid) | 1.5 times of rated power, 10 S | |||
| AC Output Rated Current (A) | 38 | 45.6 | 60.8 | 75.8 |
| Max. AC Current (A) | 50 | 60 | 70 | 83.3 |
| Max. Continuous AC Passthrough (A) | 150A | |||
| Output Frequency and Voltage | 50/60Hz;3L/N/PE 220/380Vac，230/400Vac | |||
| Grid Type | Three Phase | |||
| DC injection current (mA) | <0.5% 1n | |||
| Efficiency | |
| Max. Efficiency | 97.60% |
| Euro Efficiency | 97.00% |
| MPPT Efficiency | 99.90% |
| Protection | |
| PV Input Lightning Protection | Integrated |
| Anti-islanding Protection | Integrated |
| PV String Input Reverse Polarity Protection | Integrated |
| Insulation Resistor Detection | Integrated |
| Residual Current Monitoring Unit | Integrated |
| Output Over Current Protection | Integrated |
| Output Shorted Protection | Integrated |
| Output Over Voltage Protection | Integrated |
| Surge protection | DC Type II / AC Type II |
| Certifications and Standards | |
| Grid Regulation | CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11 |
| Safety EMC / Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
| General Data | |
| Operating Temperature Range (℃) | -40~60℃, >45℃ Derating |
| Cooling | Smart cooling noise |
| Noise (dB) | <45 dB |
| Communication with BMS | RS485; CAN |
| Weight (kg) | 60 |
| Size (mm) | 560.5W×837H×319D |
| Protection Degree | IP65 |
| Installation Style | Wall-mounted |
| Warranty | 5 years |
