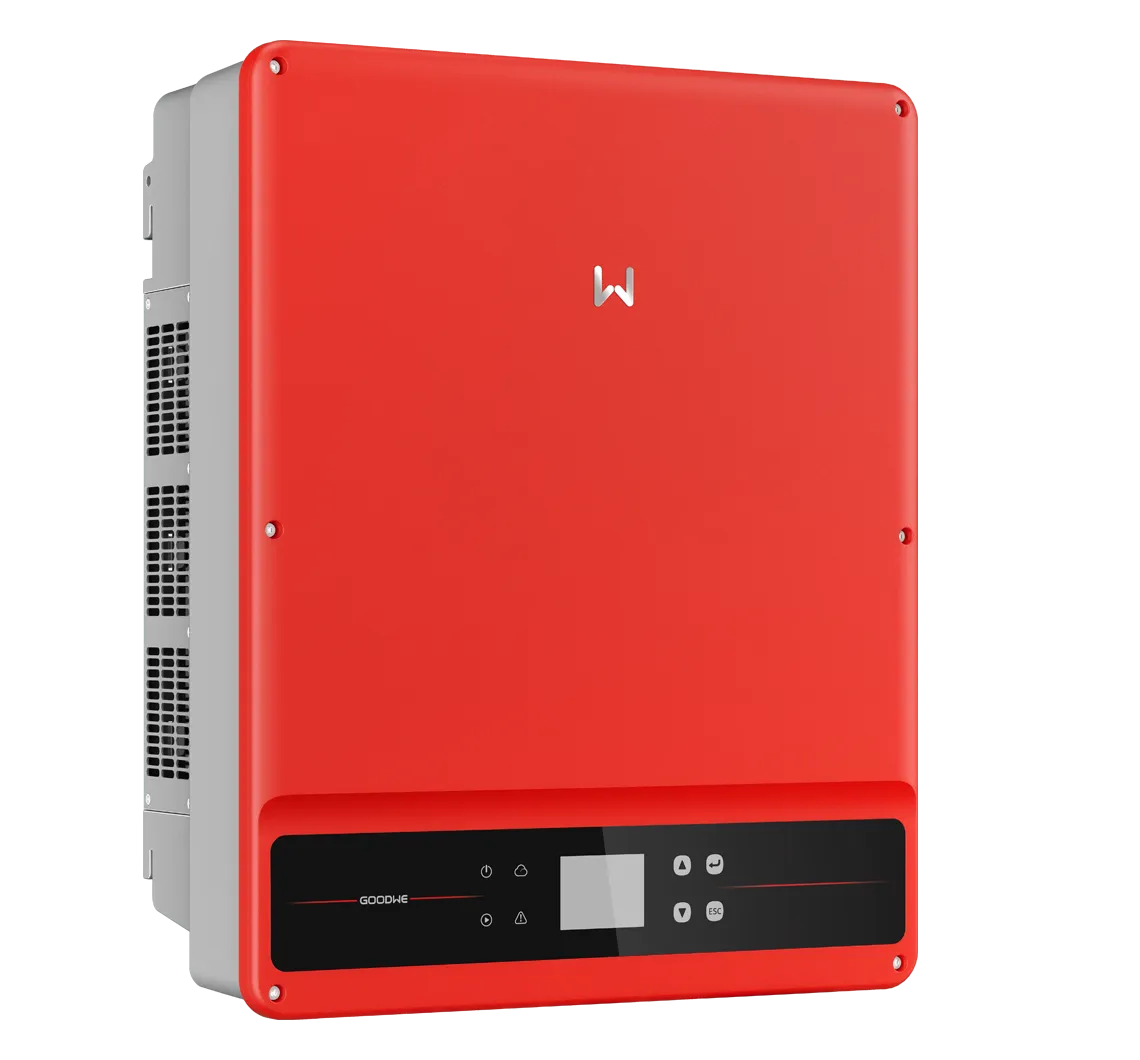

GoodWe GW25K-MT 25 kW 3 Phase 3 MPPT String Inverter

(0)

₦4,311,189.00

Overview

  • Model: GW25K-MT
  • Max. DC Input Power: 32500 Wp
  • MPPT Input voltage range: 200-950 V
  • Max. DC Input Voltage: 1100 V
  • Number of MPP Trackers: 3
  • Max. Efficiency: 98.7%
  • Nominal Output Voltage (V): 400, 3L/N/PE or 3L/PE

Quantity:

Free Delivery

Nationwide shipping

Warranty

Manufacturer guarantee

Expert Support

Installation & maintenance

  • Description
  • Features
  • Specifications
  • Reviews

Description

The GoodWe SMT Series three-phase inverter is ideal for commercial rooftop system solutions. The SMT series achieves maximum efficiency of 98.8% and features unique design highlights, including solid capacitors, fuse-free design, and optional Arc Fault Circuit Interrupter (AFCI) function. These new features ensure a longer lifespan and a higher safety level of operation, allowing for an improved user experience. With a compact design and weight of just 40 kg, the SMT series is more convenient to install. With a maximum DC input voltage of 1100V, a wider MPPT range for complex rooftops, and a start-up voltage of 180V, the SMT series guarantees an earlier generation of power and a longer working time to maximize long-term returns and profitability in safe operating conditions.

Superb Safety & Reliability

Both the DC side and AC side are equipped with optional Type II surge protection to protect the inverter from lightning, providing upgraded safety and reliability for the PV system. With optional Arc Fault Circuit Interrupter (AFCI), the inverter is able to detect arc fault failure, sending alarms through monitoring systems and breaking the circuit simultaneously.

Friendly & Thoughtful Design

With the optional integrated PLC technology, SMT 25-36kW Series strives for cost efficient communications. Featuring a compact design with a weight of just 40 kg and compact design, the inverter is exceptionally easy to handle.

Optimal Generation for Higher Return

SMT is designed to meet the increasing demand for 182mm and 210mm high power modules. With large current input and 130% DC oversizing and 110% AC overloading capacity, the system efficiency is enormously enhanced. Wide MPPT Range enables the solar system to start at an early stage, fully utilizing the daytime to maximize solar powered energy generation, giving the highest yield.

Key Features

No features available for this product.

Technical Specifications

No specifications available for this product.

Customer Reviews

Reviews

There are no reviews yet.

Be the first to review “GoodWe GW25K-MT 25 kW 3 Phase 3 MPPT String Inverter”

Your email address will not be published. Required fields are marked *

Please log in to write a review. You must purchase this product to leave a review.
