Jinko Solar Tiger 78TR 485 Watts Mono-Facial Module
Jinko Solar Tiger 78TR 485 Watts Mono-Facial Module - Image 2
Jinko Solar Tiger 78TR 485 Watts Mono-Facial Module - Image 3

Jinko Solar Tiger 78TR 485 Watts Mono-Facial Module

(0)

₦145,500.00

Quantity:

Free Delivery

Nationwide shipping

Warranty

Manufacturer guarantee

Expert Support

Installation & maintenance

  • Description
  • Features
  • Specifications
  • Reviews

Description

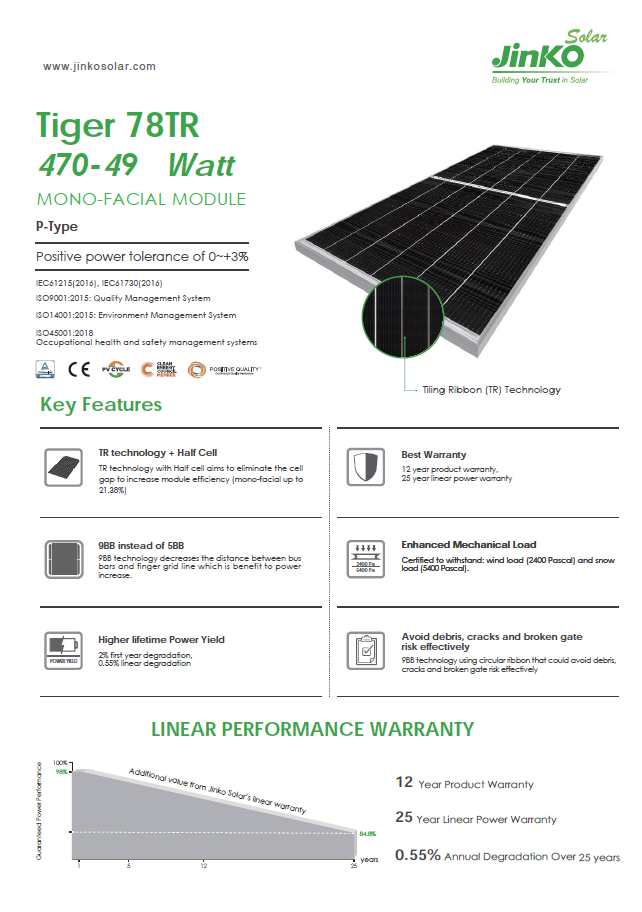

Key Features

  • TR technology + Half Cell
    TR technology with Half-cell aims to eliminate the cell gap to increase module efficiency (mono-facial up to 21.38%)
  • 9BB instead of 5BB
    9BB technology decreases the distance between bus bars and finger grid line which is benefit to power increase.
  • Higher lifetime Power Yield
    2% first year degradation, 0.55% linear degradation
  •  Best Warranty
    12-year product warranty, 25-year linear power warranty
  • Enhanced Mechanical Load
    Certified to withstand wind load (2400 Pascal) and snow load (5400 Pascal).
  •  Avoid debris, cracks and broken gate risk effectively
    9BB technology using circular ribbon that could avoid debris, cracks and broken gate risk effectively

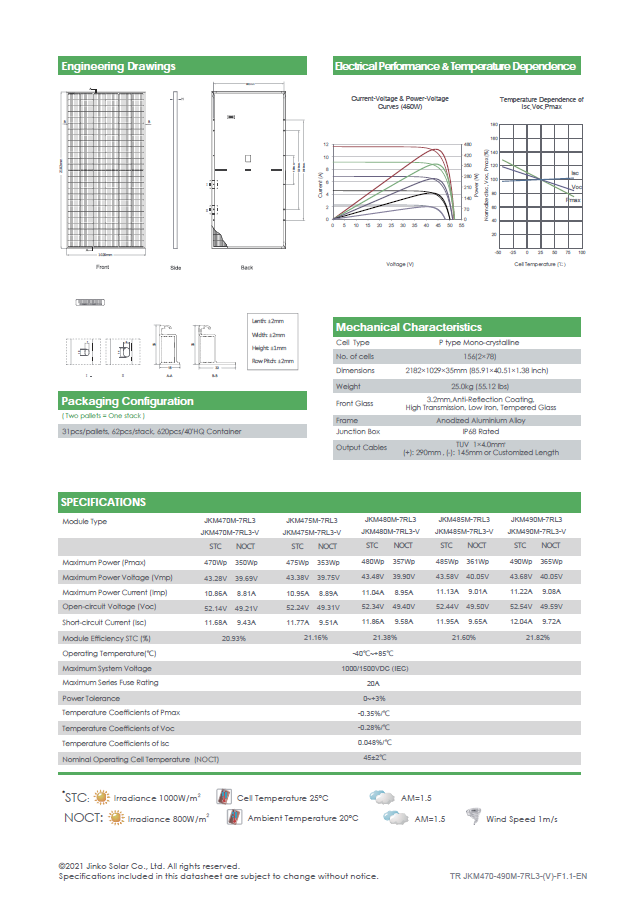

Specification | STC

  • Module Type: JKM480M-7RL3-V
  • Maximum Power (Pmax): 480Wp
  • Maximum Power Voltage (Vmp): 43.48V
  • Maximum Power Current (Imp): 11.04A
  • Open-circuit Voltage (Voc): 52.34V
  • Short-circuit Current (Isc): 11.86A
  • Module Efficiency STC (%): 21.38%
  • Operating Temperature (℃): -40℃~+85℃
  • Maximum system voltage: 1000/1500VDC (IEC)
  • Maximum series fuse rating: 20A
  • Power tolerance: 0~+3%
  • Temperature coefficients of Pmax: -0.35%/℃
  • Temperature coefficients of Voc: -0.28%/℃
  • Temperature coefficients of Isc: 0.048%/℃
  • Nominal operating cell temperature (NOCT): 45±2℃



Mechanical Characteristics

  • Cell Type: P type Mono-crystalline
  • No. of cells: 156 (2×78)
  • Dimensions: 2182×1029×35mm (85.91×40.51×1.38 inch)
  • Weight: 25.0kg (55.12 lbs)
  • Front Glass: 3.2mm, Anti-Reflection Coating,
    High Transmission, Low Iron, Tempered Glass
  • Frame: Anodized Aluminum Alloy
  • Junction Box: IP68 Rated
  • Output Cables: TUV 1×4.0mm2 (+): 250mm, (-): 150mm or Customized Length
