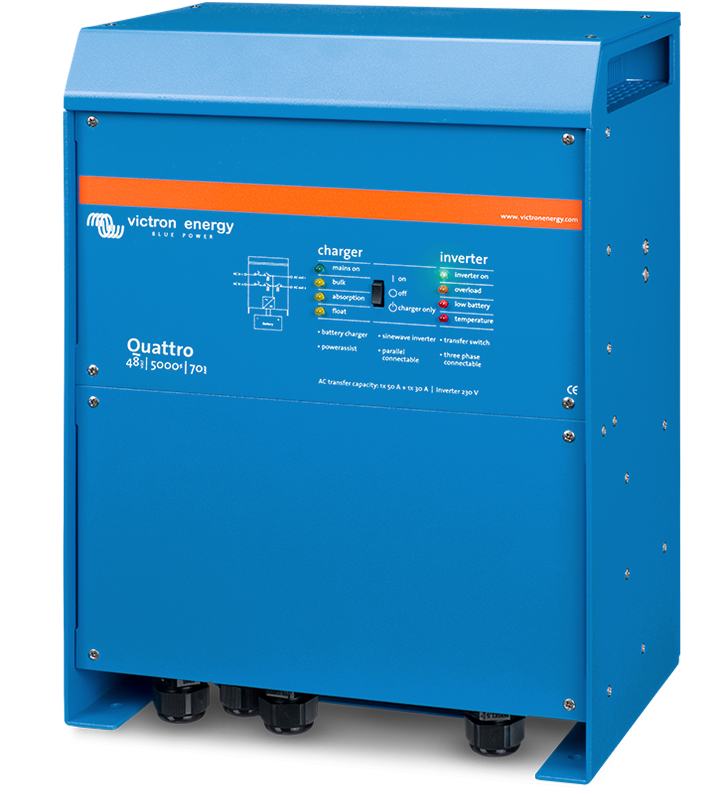

Victron Energy Quattro 48V/5000VA/70A-100/230V Inverter/Charger

(0)

₦2,213,750.00

Similar to the MultiPlus, the Quattro is also a combined inverter and charger. Additionally it can accept two AC inputs and automatically connect to the active source. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology plus multiple system integration features such as three or split phase operation and parallel operation.

Quantity:

Free Delivery

Nationwide shipping

Warranty

Manufacturer guarantee

Expert Support

Installation & maintenance

  • Description
  • Features
  • Specifications
  • Reviews

Description

    • Multifunctional

    Similar to the MultiPlus, the Quattro is also a combined inverter and charger. Additionally, it can accept two AC inputs and automatically connect to the active source. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology plus multiple systems integration features such as three or split-phase operation and parallel operation.

    • Two AC Inputs & two AC Outputs

    The Quattro can be connected to two independent AC sources, for example, shore-side power and a generator, or two generators. The Quattro will automatically connect to the active source. The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Quattro takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is life only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, such as air-conditioning or a water heater can be connected to this output.

    • Unique PowerAssist feature

    The Quattro will prevent the overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shoreside supply with power taken from the battery.

    • Virtually unlimited power thanks to parallel operation

    Up to 6 Quattros can operate in parallel to achieve higher power output. Three-phase or split-phase operation is also possible. Please check our datasheets to see which models have parallel, three-phase, and split-phase capabilities.

    • Remote Monitoring and Control

    Monitor and control your Quattro and system or systems locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop, or PC for multiple operating systems. There is no end to the level of control, via the required Color Control GX or Venus GX, from adjusting your Quattro to setting a Geofence for-hire vehicles and more…

Key Features

No features available for this product.

Technical Specifications

No specifications available for this product.

Customer Reviews

Reviews

There are no reviews yet.

Be the first to review “Victron Energy Quattro 48V/5000VA/70A-100/230V Inverter/Charger”

Your email address will not be published. Required fields are marked *

Please log in to write a review. You must purchase this product to leave a review.
