Higher yields / Safe & Reliable / Smart / User-friendly

SUN-80K-SG02HP3-EU-EM6 is a brand new three-phase hybrid inverter with a high-voltage battery, ensuring the system is safe and reliable. With a compact design and high-power density, this series supports a 1.3 DC/AC ratio, saving device investment. It supports a three-phase unbalanced output, extending the application scenarios. Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS, x1 RS232 port for remote control, and x1 DRM port, which makes the system smart and flexible.

It is equipped with RS485 / CAN port for battery communication.

Remotely shutdown function

Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remote shutdown immediately when an accident occurs. Setting parameters and FW updates remotely, which makes PV plant O&M easier.

Technical Specifications

Battery Input Data

• Model: SUN-80K-SG02HP3-EU-EM6
• Battery Type: Lithium-ion
• Battery Voltage Range (V): 160-1000
• Max. Charging Current (A): 80+80
• Max. Discharging Current (A): 80+80
• Charging Strategy for Li-ion Battery: Self-adaption to BMS
• Number of Battery Input: 2

PV String Input Data

• Max. PV Access Power (W): 160000
• Max. PV Input Power (W): 128000
• Max. PV Input Voltage (V): 1000
• Start-up Voltage (V): 180
• MPPT Voltage Range (V): 150-850
• Rated PV Input Voltage (V): 650
• Max. Operating PV Input Current (A): 36+36+36+36+36+36
• Max. Input Short-Circuit Current (A): 54+54+54+54+54+54
• No. of MPP Trackers/
  No. of Strings MPP Tracker: 6/2+2+2+2+2+2

AC Input/Output Data

• Rated AC Input/Output Active Power (W): 80000
• Max. AC Input/Output Apparent Power (VA): 88000
• Rated AC Input/Output Current (A): 121.3/115.9
• Max. AC Input/Output Current (A): 133.4/127.6
• Max. Continuous AC Passthrough (grid to load) (A): 200
• Peak Power (off-grid) (W): 1.5 times of rated power, 10s
• Power Factor Adjustment Range: 0.8 leading to 0.8 lagging
• Rated Input/Output Voltage/Range (V): 220/380V, 230/400V 0.85Un-1.1Un
• Rated Input/Output Grid Frequency/Range (Hz): 50/45-55, 60/55-65
• Grid Connection Form: 3L+N+PE
• Total Current Harmonic Distortion THDi: <3% (of nominal power)
• DC Injection Current: <0.5% In

Efficiency

• Max. Efficiency: 97.60%
• Euro Efficiency: 97.0%
• MPPT Efficiency: >99%

Trina Solar 710W Vertex N-Type Bifacial Module – Unmatched Efficiency with Advanced Solar Technology

The Trina Solar 710W Vertex N-type i-TOPCon Bifacial Dual Glass Monocrystalline Module redefines solar energy solutions by leveraging cutting-edge technology for unmatched efficiency and durability. Equipped with innovative N-type i-TOPCon cell technology, this solar panel ensures superior energy output, making it an ideal choice for both residential and commercial installations. The bifacial design maximizes light capture from both sides of the module, increasing energy production even in low-light environments.

Durable and Reliable Dual Glass Construction

Engineered for long-term reliability, this module features a dual glass structure that enhances its resilience against environmental conditions such as extreme temperatures, humidity, and UV exposure. The robust construction not only reduces the potential of micro-cracking but also extends the product’s lifespan, helping reduce maintenance costs and ensure a sustainable energy solution for years to come.

Exceptional Sustainability and ROI

The Trina Solar 710W Vertex N-type module is designed with both performance and sustainability in mind. Its high power density minimizes the required installation area, enabling lower system costs and higher returns on investment. Whether for ground-mounted solar farms or rooftop installations, this module ensures optimal performance while supporting global carbon reduction initiatives.

Innovative Efficiency with Canadian Solar 590W HiKu6 Mono PERC Module

The Canadian Solar 590 Watts HiKu6 Mono PERC Module is engineered to revolutionize energy efficiency and performance. With an impressive module efficiency of up to 22.8%, this solar panel is an ideal solution for utility power plants and large-scale energy projects. Its innovative design not only enhances energy conversion but also reduces the Levelized Cost of Energy (LCOE) by up to 4.5%, ensuring a cost-effective, high-performance solution for your energy needs. Furthermore, up to 5.6% lowered system costs make this module a valuable investment for long-term savings.

Utilizing advanced LID/LeTID mitigation technology, the Canadian Solar HiKu6 Mono PERC significantly reduces degradation—by up to 50%—enhancing reliability and extending the lifespan of the product. This module is compatible with mainstream trackers, ensuring seamless integration into your existing systems while offering superior shading tolerance for maximum energy output.

Unmatched Durability and Reliability

Reliability is the cornerstone of the Canadian Solar 590W HiKu6. The module is built to minimize micro-crack impacts and features a 40°C lower hot spot temperature, greatly reducing the module failure rate even under extreme conditions. Designed to endure heavy environmental loads, the panel can sustain snow loads up to 5400 Pa and wind loads up to 2400 Pa, ensuring superior performance in harsh climates.

Additionally, the module comes with comprehensive warranties: a 12-year enhanced product warranty on materials and workmanship, and a staggering 25-year linear power performance warranty. These guarantees reaffirm the durability and reliability of this cutting-edge solar solution, giving you peace of mind for decades to come.

Optimized Electrical and Mechanical Design

From an electrical perspective, the Canadian Solar 590W HiKu6 Mono PERC is designed to deliver maximum energy performance. With a nominal maximum power (Pmax) of 590W, operating current (Imp) of 13.57A, and a module efficiency of 22.8%, this panel ensures consistent power generation. The module accommodates a wide operating temperature range (-40°C ~ 85°C) and is compatible with system voltages up to 1500V, making it versatile for multiple uses.

The mechanical design is just as robust, featuring a durable 3.2mm tempered glass cover, anodized aluminum alloy frame, and a weatherproof IP68-rated junction box with bypass diodes for enhanced protection. The dimensions of the panel—2278 x 1134 x 30 mm—and a weight of 27.6 kg make it manageable for easy installation. Reliable connectors, including T4, H4 UTX, or MC4-EVO2, further simplify the deployment process.

Why Choose Canadian Solar 550W HiKu6 Mono PERC Module?

When it comes to performance, dependability, and cost-efficiency, the Canadian Solar HiKu6 Mono PERC stands out as a top-tier choice for utility-scale power production. Its numerous technological innovations, reduced degradation, and compatibility with modern trackers ensure optimal energy yield. Coupled with its ability to withstand extreme environmental conditions and backed by industry-leading warranties, this module embodies both value and quality.

Take your solar energy generation to the next level with the Canadian Solar 590W HiKu6 Mono PERC Module—a robust, efficient, and reliable solution for sustainable power production.

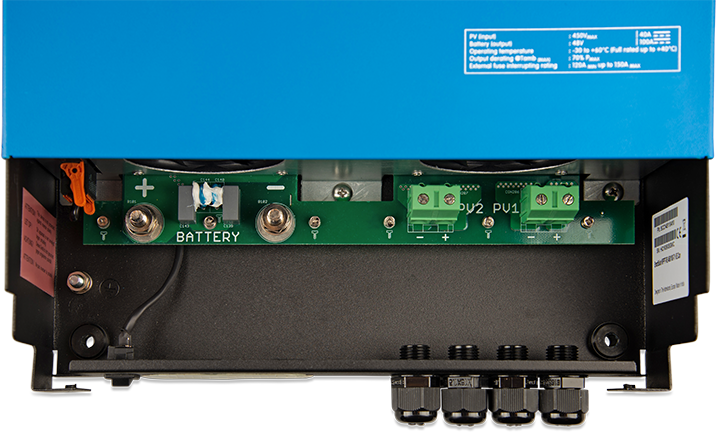

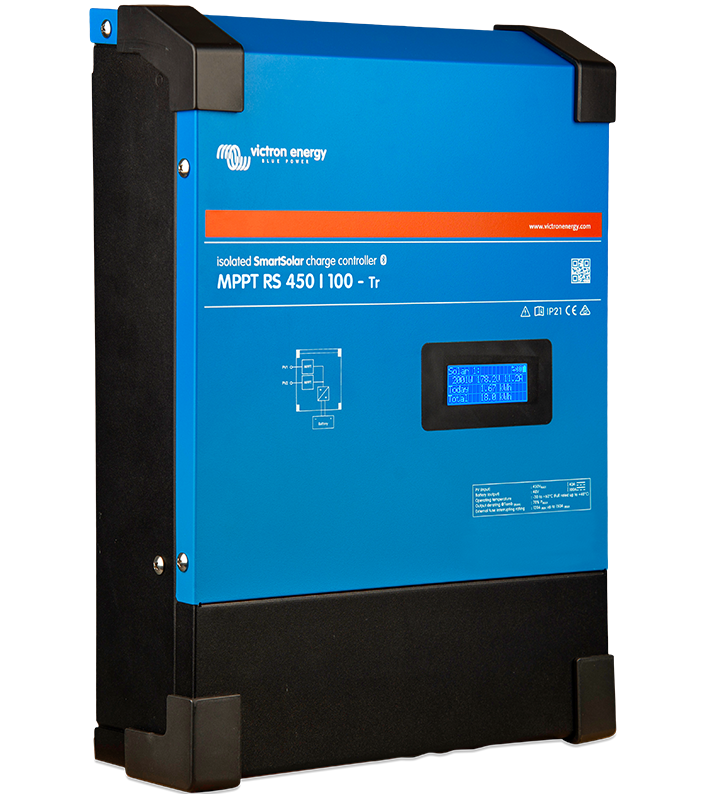

• Solar charge controller

The MPPT VE.Can SmartSolar charger uses the latest and fastest technology to convert energy from a solar array into energy that optimally charges a battery bank.

The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.

• MPPT: Ultra-Fast Maximum Power Point Tracking

The MPPT VE.Can SmartSolar charger connects to a PV array of 150 or 250 Volt Voc and will automatically detect and charge your 12, 24, or 48V battery bank with current ranging from 70 to 100A depending on the model.

The charge settings are fully programmable and can even be set up for different battery chemistries, like lead-acid, lithium and others.

• Control Your Charger Remotely

The MPPT VE.Can SmartSolar charger can be remotely controlled and configured over Bluetooth via the VictronConnect App. This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, and historical data.

• Daisy Chain Additional Units

The VE.Can SmartSolar charger is equipped with CAN bus ports. This allows for communication with additional VE.Can SmartSolar chargers. The additional units are simply “daisy-chained” to each other with a single RJ45 cable between the individual units.

When connected to each other, all individual VE.Can SmartSolar chargers, will synchronize their charge stages. They can also send their data, via a single cable, to a GX monitoring device.

• Remote Monitoring and Control

If the GX device is connected to the internet, the Victron Remote Management Portal (VRM) provides access to the full power of your solar charger(s).

For remote installations – even when there is no internet connection nearby – you may be able to monitor your MPPT by connecting the  GlobalLink 520.

• SmartSolar Control Display

The VE.Can SmartSolar charger is also equipped with a VE.Direct port like our other MPPT solar chargers. This port can be for single unit monitoring or for streetlight control. The remote on/off connector can be externally controlled by a third-party device like a lithium battery. An optional plug-in LCD display/control provides live-data, set-up and management, straight from the face of the device.
